Product name

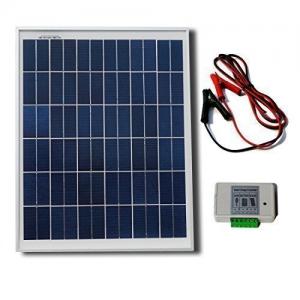

25W12V Solar module with Battery Clips&3A Charger

PriceUSD30.15
Supplier

Eco-worthy Inc


Phone(Login to view)
SEND YOUR INQUIRY
Please fill in fully your information to send email
Your name*
Company
Email*
Address*
Country
Phone*
Message*
Verify *
Product Description


Here are sale the 25w home solar panel installer kit with high quality battery clips, the 25 watt solar panel is Made of the real Aluminium frame and Glass, not plastic. All of DC wiring from panel to battery clamps is 16 Gauge, is more than enough for 25 watts. If your full battery voltage reading at around 13.5 to 13.8, this mean: You're using around 50% to 80% of your solar putting out as the rest of your power stay into your main battery as of float charge, at the same time, your full 25 watts will turn down to around 8 watts, it also better for your battery too.This Chart will give you more vision, what it can do, safely.




The 25W solar panel system Kit includes:



25W solar panel1pcs 25W poly solar panel
Solar charge controller1pcs 3A 12V/24V solar charge controller
Extension cable2m(6.6ft) extension cable with battery clips


Specification
  • 25W solar panel solar panel

Related power

25W

Maximum/Peak Voltage(Vmp)

17.9V

Open Circuit Voltage(Voc)

22.41V

Maximum/Peak Current(Imp)

1.4A

Short circuit current (Isc)

1.54A

Output Tolerance

±3%

Temperate coefficient of Isc

(010+/- 0.01) %/

Temperate coefficient of Voc

- (0.38 +/-0.01) %/

Temperate coefficient of power Voc

-0.47%/

Temperature range

-40to +80

Frame

Heavy duty aluminum

Guarantee of power

90% within 10 years 80% within 25 years

Kind of glass and its thickness

Low Iron, high transparency tempered glass of 3.2mm

SLA Battery Voltage

12V

Size:

520*365*18mm(20.5''x14.4''x0.7'')
  • 3A solar charge controller

Nominal output (automatic identification )

12V
24V

Operating current

3A

3A

Short-term load current(60s)

6A

6A

Max solar panel

40W

80W

Over discharge protection

10.8V(±0.2V)

21.6V

Reset

12V(±0.2V)

24V (±0.2V)

Over discharge protection

14.4V (±0.2V)

28.8V

Float charge

13.8V (±0.2V)

27.6V(±0.2V)

Temperature compensation/

-27

-27

PWM charging

Yes

Yes

Self- consumption

1.5mA

3mA

LED charging indicator

Yes

Yes

Solar panel connection indicator

Yes

Yes

Operating temperature

-20 to +60

-20 to +60

Waterproof

IP65

IP65

Size

80*62*29mm(3.1''*2.4''*1.1'')

80*62*29mm(3.1''*2.4''*1.1'')

Net weight

40g

40g
