Product name

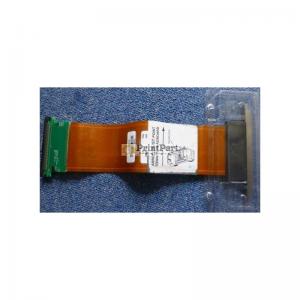

RICOH GEN5 WATERBASED PRINTHEAD

PriceUS$1495
Supplier

Printpartstore.com


Phone(Login to view)
SEND YOUR INQUIRY
Please fill in fully your information to send email
Your name*
Company
Email*
Address*
Country
Phone*
Message*
Verify *
[START]RICOH GEN5 WATERBASED PRINTHEAD[/START]

[START]This GEN5 UV printhead is suitable for a range of water printers. It supports up to four colours and has a total of 1.280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers. This is Ricoh original printhead and it is covered by a manufacturer warranty. This Ricoh GEN5 is available in two different cable lengths: 19cm long and 44cm long[/START]
[START]
[/START]

[START]
  • Dimensions: 89 x 25 x 69 mm (excluding cables)
  •     Head materials: SST, Nickel alloy and Epoxy Adhesive
  •     Nozzle plate surface: Coated SST
  •     Number of nozzles: 4 x 320 nozzles
  •     Nozzle spacing: 0.1693 mm
  •     Nozzle density: up to 600 npi
  •     Piezo yype: D33 Stacked PZT
  •     Temperature control: Integrated Heater and Thermistor
  •     Operator temperature range: Up to 80° C
  •     Native drop volume: 7 pl
  •     Drop volume range: 7 - 35 pl
  •     Drop velocity: 7 m/s
  •     Jetting frequency: Up to 60 kHZ
  •     Ink compatibility: Water Inks
  •     Life: 100 billion actuations per nozzle
[/START]
[START]
Printer compatibility: Mimaki TS500-1800 / TX500-1800B / TX500-1800DS, ATP Color DPP740 G5 / DFP1320, Hollanders ColorBooster 230 / ColorBooster 250, MTEX Turbo Sub, DIP J4
[/START]
