Product name

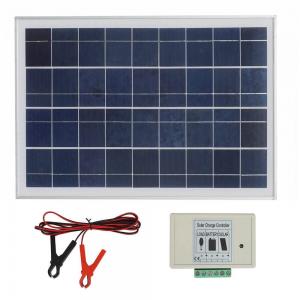

25W 12V Solar Panel Kit with Solar Charger Control

Price48.45
Supplier

Eco-Worthy Solar Technology Co. Ltd


Phone(Login to view)
SEND YOUR INQUIRY
Please fill in fully your information to send email
Your name*
Company
Email*
Address*
Country
Phone*
Message*
25W 12V polycrystalline solar panel system photovoltaic solar panel for a small home lighting system, RV, cabin, telecom station, any 12V DC load package included.
The 25W solar panel system widely applied to DC LED lights, battery, camping, picnic and other uses. The solar panel is with good resistance to climate, preventing wind, hail. It can effectively resist corrosion of moisture and salt fog and can produce highly efficient power and energy.
Package Included
1 pc 25w Polycrystalline Solar Panel with 1m Cable
1 pc 3A 12V/24V Solar Charge Controller
1 pair 2m Extension Cable with Battery Clips

25Watts Polycrystalline Solar Panel For Home Garden
  • Can be applied to vary DC appliance, Ideal for everyday use.
  • High-efficiency solar cells, small in size and easy to take.
  • Water-proof solar panel with long-lasting aluminum frame provides over 20 years lifespan.
  • 3A 12V/24V PWM charge controller, overcharge and over-discharge protection for the battery.
  • Battery clips with 2m extension wire, easy and convenient for operation.
Specification
Rated power25W
Voc22.41V
Vop17.9V
Short circuit current (Isc)1.54A
Working current (Iop)1.4A
Output tolerance±3%
Temperate coefficient of Isc(010+/- 0.01 )%/ ℃
Temperate coefficient of Voc- (0.38 +/-0.01 )%/ ℃
Temperate coefficient of power Voc-0.47%/℃
Temperature range-40℃ to +80℃
FrameHeavy duty aluminum
Kind of connectionwaterproof junction box, can be customized
Guarantee of power90% within 10 years  80% within 25 years
Kind of glass and its thicknessLow Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage12V
Dimensions (L x W x H)mm520*365*18(20.47*14.37*0.71in)

Pre-installed 3A 12V/24V Solar Charge Controller

Specification
Technical Parameter12V24v
Max charge current3A3A
Max load current6A6A
Over-discharge protection10.8V(±0.2V)21.6V
Reset12V(±0.2V)24V (±0.2V)
Overcharger protection14.5V/29V14.5V/29V
Float Charge13.8V (±0.2V)27.6V(±0.2V)
Temperature compensation/℃-27-27
Self-consumption1.5mA3mA
WaterproofIP22IP22
Operating temperature-20 to +60℃-20 to +60℃
LED charging indicatorYesYes

- Connection order:
*First step: Connect the battery to the solar charge controller; *Second step: connect the solar panel to the controller; *The last step: connect the load to the controller. - Disconnect order: *First step: disconnect the load with solar charge controller; *Second step: disconnect the controller with a solar panel; *The last step: disconnect the battery with the solar charge controller. - Cleaning Note: *Use warm water and a soft sponge or cloth to clean your panel and keep the controller dry.
