Product name

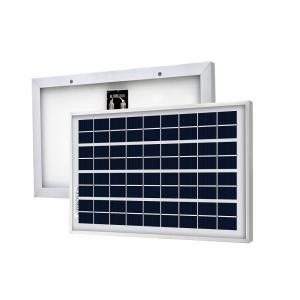

10 Watts Solar Panel for Home Garden Boat Charging

Price18.99
Supplier

Eco-Worthy Solar Technology Co. Ltd


Phone(Login to view)
SEND YOUR INQUIRY
Please fill in fully your information to send email
Your name*
Company
Email*
Address*
Country
Phone*
Message*
Verify *
ECO-WORTHY 's solar panel composes of a multi-crystal solar cell with an efficiency of over 17%. All ECO-WORTHY rigid solar panels are constructed using a tempered glass front, EVA pottant, and a PVF backing to provide maximum protection from the most severe environmental conditions. The entire laminate is framed in a heavy-duty anodized aluminum frame to provide structural strength and ease of installation. This translates to both more wattage per square foot and lowers mounting structure cost.
Package Included:
1 pc 10W 12V Polycrystalline Solar Panel
Feature
  • Widely used on small dry camp and off-grid lighting applications.
  • Easy Installation with pre-drilled hole.
  • Waterproof IP-65 Rated Junction Box: Advanced water and dustproof level (complete protection against environmental particles and low-pressure water jets).
  • Resistance to Salt Corrosion and Humidity.
  • Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).
  • Warranty: 5-year material and workmanship warranty.
Specification
Rated power10 W
Voc20.6V
Vop17.3V
Short circuit current (Isc)0.69A
Working current (Iop)0.58A
Output tolerance±3%
Temperate coefficient of Isc(010+/- 0.01 )%/ ℃
Temperate coefficient of Voc- (0.38 +/-0.01 )%/ ℃
Temperate coefficient of power Voc-0.47%/℃
Temperature range-40℃ to +80℃
FrameHeavy duty aluminum
Kind of connectionWaterproof junction box, can be customized
Guarantee of power90% within 10 years  80 within 25 years
Kind of glass and its thicknessLow Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage12V
Dimensions (L x W x H)mm337 ×204 x 18(13.3*8.06*0.72)
Weight0.85kgs (1.88lbs)

Quality assurance testing:

1. Thermal cycling test2. Thermal shock test3. Thermal/Freezing and high humidity cycling test4. Electrical isolation test5. Hail impact test6. Mechanical, wind and twist loading test7. Salt mist test8. Light and water-exposure test9. Moist carbon dioxide/sulphur dioxide
